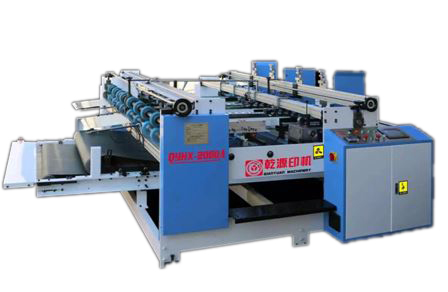

ON-2000A high speed folder gluer is used for box making by double sheets (AA sheets or AB sheets) or single sheet. It replaced the manual pasting, reducing the labor intensity. Comparing with the traditional semi-automatic gluer, it saves labor and improves the quality of the products.
Main features:
The machine uses frequency converter for speed regulation, PLC central control, simulation to digit program system, together with high speed clutch, which ensure high accurate running.
It is equipped with independent paper feeding system and strong suction feeding device, which ensures smooth feeding for both double sheets and single sheet. When doing double sheets, the gluing (hot melt glue) can be done dynamically with four sides registration, thus guarantee high accuracy. After double sheets sticking, they need to be formed manually at the folding unit. At the same time, the bad creasing line and corrugated line can be corrected manually as well. This machine only needs two operators.
